Piping Selector Large Bore/Square Wheel
Book Details
- Author
- home_improvement
- Publisher
- Piping Selector
- Language
- English
- Category
- Sanitary Fittings
- Condition
- New
- ISBN-13
- 9797000001878
- ISBN-10
- 7000001879
Free U.S. shipping on all orders. International shipping is calculated at checkout.
ISBN: 7000001879
Author: Piping Selector
Condition: New

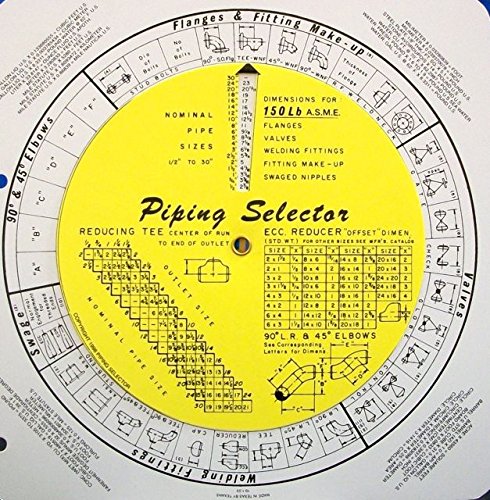

The wheel-chart provides speedy access to valve, flange and fitting dimensions.Information displayed:Side OneWelding Fittings 150# 90Elbow Long Radius 45Elbow Long Radius Tee Reducer Cap Tee & 90Elbow Tee & 45Elbow Stub-End Swage 90Elbow and 45Elbow Combination Flanges & Fitting Make-up 90Elbow & Slip on Flange Tee and WN Flange 45 and WN Flange 90 and WN Flange Flange ThicknessLength of WN FlangeWidth of WN Flange ValvesGate ValveGlobe ValveCheck Valve ControlValve Reducing TeesEcc. Reducer Offset DimensionUseful Dimension ConversionsSide TwoSocket Weld Fittings 2000# & 3000#
